RCDA Series Air-Cooled Suspended Electromagnetic Separator – Description

The RCDA series air-cooled suspended electromagnetic separator features forced air cooling using an internal air conditioning fan. It offers simple operation and convenient use, making it suitable for applications with relatively good environmental conditions. It is used for iron removal from materials before crushers and on conveyor belts, providing reliable protection for mechanical equipment such as roller presses, crushers, and vertical mills.

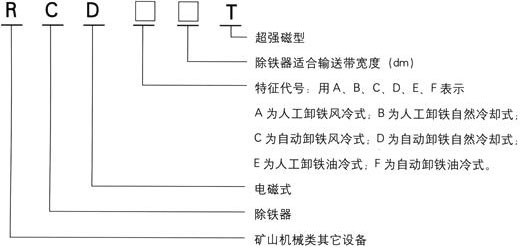

Explanation of the Model Designation for Electromagnetic Separators

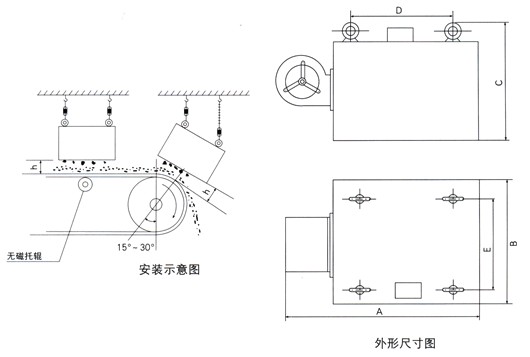

RCDA Series Air-Cooled Suspended Electromagnetic Separator – Installation Diagram

RCDA Series Air-Cooled Suspended Electromagnetic Separator – Main Technical Parameters

Model	Suitable Belt Width (mm)	Rated Suspension Height h (mm)	Material Thickness ≤ (mm)	Excitation Power ≤ (kW)	Magnetic Field Intensity ≥ (mT)	Fan Power ≤ (kW)	Suitable Belt Speed ≤ (m/s)	Duty Cycle	Weight (kg)	Overall Dimensions (mm)
										A	B	C	D/E
RCDA-4	400	100	70	0.6	50	0.15	2.5	Continuous	350	620	400	360	240
RCDA-5	500	150	110	1.0	60	0.15	2.5	Continuous	450	710	500	450	340
RCDA-6	600/650	180	130	1.6	60	0.15	2.5	Continuous	620	910	600	480	400
RCDA-6.5	650	200	150	2.0	70	0.37	2.5	Continuous	750	990	650	500	450
RCDA-8	800	250	200	4.0	70	0.37	2.5	Continuous	980	1080	800	600	600
RCDA-10	1000	300	250	6.0	70	0.45	2.5	Continuous	1330	1400	1000	670	800
RCDA-12	1200	350	300	8.0	70	0.45	2.5	Continuous	1950	1600	1200	750	1000
RCDA-14	1400	400	350	10	70	0.8	2.5	Continuous	2870	1910	1400	780	1200
RCDA-16	1600	450	400	15	70	0.8	2.5	Continuous	3800	2010	1600	810	1400
RCDA-18	1800	500	450	20	70	1.3	2.5	Continuous	4500	2360	1800	930	1600
RCDA-20	2000	550	500	25	70	1.3	2.5	Continuous	6900	2560	2000	980	1800

RCDA-T Series Air-Cooled Suspended Electromagnetic Separator – Ultra-High-Intensity Magnetic Versions

The RCDA-T series air-cooled suspended electromagnetic separator is available in ultra-high-intensity magnetic versions:

Type T1: Magnetic field intensity of 90 mT
Type T2: Magnetic field intensity of 120 mT
Type T3: Magnetic field intensity of 150 mT
