RCDB, PDC, RCDY Series Dry Type Electromagnetic Separator – Description

The RCDB series dry type electromagnetic separator (also known as the PDC series disc type or RCDY series) is an iron removal device designed to remove tramp iron from powdered or lump non-magnetic materials. It features an internally cast electrical resin construction with a self-cooling, fully sealed design. Characteristics include deep magnetic penetration, strong magnetic attraction, dustproof, rainproof, and corrosion-resistant construction, allowing reliable operation even in harsh environments.

The main performance indicators meet or exceed the requirements of the JB/T7689-95 standard. This product can remove ferromagnetic materials ranging from 0.1 kg to 35 kg mixed with non-magnetic materials.

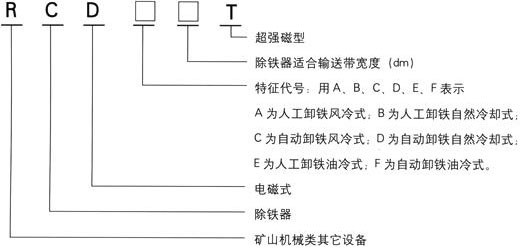

Explanation of the Model Designation for Electromagnetic Separators

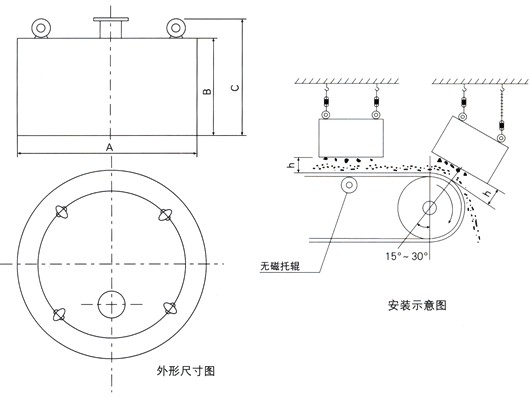

RCDB, RCDY, PDC Series Dry Type Electromagnetic Separator – Installation Diagram

RCDB, RCDY, PDC Series Electromagnetic Separator – Technical Parameters

Model	Suitable Belt Width (mm)	Rated Suspension Height h (mm)	Material Thickness ≤ (mm)	Magnetic Field Intensity ≥ (mT)	Excitation Power ≤ (kW)	Suitable Belt Speed ≤ (m/s)	Duty Cycle	Weight (kg)	Overall Dimensions (mm)
									A	B	C
RCDB-4	400	120	70	50	0.6	2.5	Continuous	300	500	240	280
RCDB-5	500	150	100	60	1.0	2.5	Continuous	430	610	280	325
RCDB-6	600/650	180	130	63	1.6	2.5	Continuous	580	710	280	325
RCDB-6.5	650	200	150	70	2.0	2.5	Continuous	680	820	280	325
RCDB-8	800	250	200	70	3.6	2.5	Continuous	950	960	310	355
RCDB-10	1000	300	250	70	5.0	2.5	Continuous	1560	1200	310	360
RCDB-12	1200	350	300	70	6.8	2.5	Continuous	2250	1400	310	365
RCDB-14	1400	400	350	70	9.0	2.5	Continuous	2950	1650	405	485
RCDB-16	1600	450	400	70	13	2.5	Continuous	4800	1900	460	540
RCDB-18	1800	500	450	70	18	2.5	Continuous	6900	2200	530	610
RCDB-20	2000	500	500	70	20	2.5	Continuous	7600	2400	550	650

RCDB-T Series Ultra-High-Intensity Dry Type Electromagnetic Separator – Magnetic Versions

The RCDB-T series ultra-high-intensity dry type electromagnetic separator is available in the following versions:

Type T1: Magnetic field intensity of 90 mT
Type T2: Magnetic field intensity of 120 mT
Type T3: Magnetic field intensity of 150 mT
