RCDE Series Oil-Cooled Suspended Electromagnetic Iron Remover

Name: RCDE Series Oil-Cooled Suspended Electromagnetic Iron Remover
SKU: 0

Product Details

Get Free Quotes

Product Details

RCDE Series Oil-Cooled Electromagnetic Separator – Description

The RCDE series oil-cooled electromagnetic separator is independently manufactured by our company using advanced foreign technology. It adopts an internal and external pipeline oil circulation cooling system with a fully sealed structure. Its cooling performance and various operating characteristics are superior to similar domestic products. Features include low temperature rise during continuous operation, strong magnetic force, dustproof, rainproof, corrosion-resistant, and long service life. This series operates reliably with a low failure rate even in harsh environments, making it the preferred iron removal equipment for many users.

Note: For inclined installation, please specify the inclination angle.

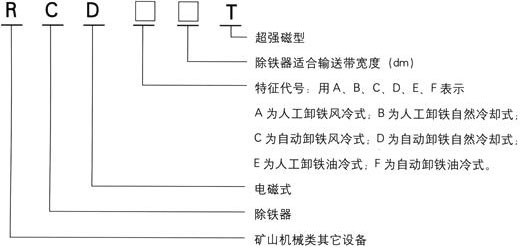

Explanation of the Model Designation for Electromagnetic Separators

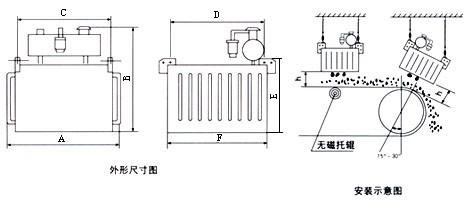

RCDE Series Oil-Cooled Electromagnetic Separator – Installation Diagram

RCDE Series Oil-Cooled Suspended Electromagnetic Separator – Main Technical Parameters

Model	Suitable Belt Width (mm)	Rated Suspension Height h (mm)	Material Thickness ≤ (mm)	Magnetic Field Intensity ≥ (mT)	Excitation Power ≤ (kW)	Suitable Belt Speed ≤ (m/s)	Duty Cycle	Weight (kg)	Overall Dimensions (mm)
									A	B	C	D/E
RCDE-4	400	120	70	55	0.6	2.5	Continuous	300	650	400	620	360
RCDE-5	500	150	100	60	1.0	2.5	Continuous	500	750	500	730	460
RCDE-6	600/650	180	130	60	1.5	2.5	Continuous	650	850	600	760	560
RCDE-6.5	650	200	150	70	2.0	2.5	Continuous	750	900	650	830	610
RCDE-8	800	250	200	70	3.0	2.5	Continuous	1150	1050	800	850	760
RCDE-10	1000	300	250	70	4.5	2.5	Continuous	1400	1350	1000	950	940
RCDE-12	1200	350	300	70	6.0	2.5	Continuous	2780	1500	1200	1050	1160
RCDE-14	1400	400	350	70	8.5	2.5	Continuous	4200	1800	1400	1100	1360
RCDE-16	1600	450	400	70	12.5	2.5	Continuous	5700	2100	1600	1200	1540
RCDE-18	1800	500	450	70	18	2.5	Continuous	7300	2260	1800	1300	1740
RCDE-20	2000	550	500	70	22	2.5	Continuous	8500	2450	2000	1400	1940
RCDE-22	2200	600	550	70	27	2.5	Continuous	10500	2700	2200	1500	2140

RCDE-T Series Oil-Cooled Suspended Electromagnetic Separator – Ultra-High-Intensity Magnetic Versions

The RCDE-T series oil-cooled suspended electromagnetic separator is available in ultra-high-intensity magnetic versions: Type T1 offers a magnetic field intensity of 90 mT, Type T2 provides 120 mT, and Type T3 delivers 150 mT.
