RCDF Series Oil-Cooled Self-Discharging Electromagnetic Separator – Description

The RCDF series oil-cooled self-discharging electromagnetic separator is based on the RCDE series oil-cooled suspended electromagnetic separator, with the addition of a discharge mechanism consisting of a drive motor, rollers, and a discharge belt with a scraper. It offers features such as strong magnetic force, fast heat dissipation, dustproof, rainproof, corrosion resistance, continuous operation, and low maintenance cost. Since its introduction, it has gained wide recognition from users for its convenient operation, low failure rate, and minimal maintenance requirements.

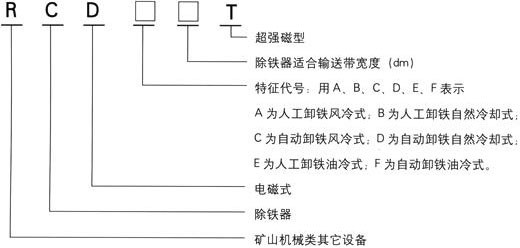

Explanation of the Model Designation for Electromagnetic Separators

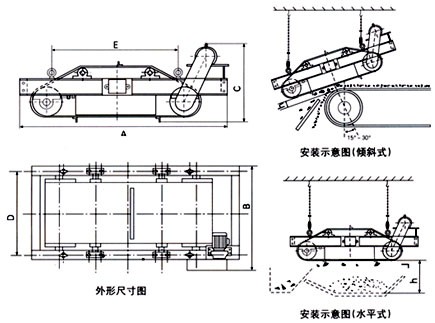

RCDF Series Oil-Cooled Self-Discharging Electromagnetic Separator – Outline Dimensions and Installation Diagram

RCDF Series Oil-Cooled Self-Discharging Electromagnetic Separator – Main Technical Parameters

Model	Suitable Belt Width (mm)	Rated Suspension Height h (mm)	Material Thickness ≤ (mm)	Excitation Power ≤ (kW)	Magnetic Field Intensity ≥ (mT)	Drive Power ≤ (kW)	Suitable Belt Speed ≤ (m/s)	Weight (kg)	Overall Dimensions (mm)
									A	B	C	D	E
RCDF-5	500	150	100	1.2	60	1.2	2.5	1200	1900	900	800	650	1050
RCDF-6	600/650	180	130	1.8	60	1.5		1600	2100	1000	850	700	1170
RCDF-6.5	650	200	150	2.0	70	2.2		1900	2200	1050	900	750	1270
RCDF-8	800	250	200	3.3	70	2.2		2600	2350	1150	970	810	1420
RCDF-10	1000	300	250	4.7	70	3.0		3650	3100	1400	1080	810	1580
RCDF-12	1200	350	300	6.8	70	4.0		4550	3250	1500	1200	940	1780
RCDF-14	1400	400	350	8.9	70	4.0		6390	3500	1945	1300	940	1950
RCDF-16	1600	450	400	13.5	70	5.5		7950	3650	2010	1400	940	2180
RCDF-18	1800	500	450	18	70	5.5		9000	3850	2400	1500	940	2315
RCDF-20	2000	500	500	22	70
