RCT(RCTG) Series Permanent Magnetic Drum – Description

The RCT(RCTG) series permanent magnetic drum, also known as a magnetic pulley or dry-type coarse magnetic separator, features a composite magnetic system constructed with high-performance hard magnetic materials. It offers high magnetic field intensity, deep magnetic field penetration, simple construction, convenient operation, maintenance-free service, no power consumption, and no demagnetization over years of use. This unit is suitable for iron recovery applications in industries such as cement, magnetic separation, mining, steel, chemicals, refractories, and waste treatment. It can be used as a replacement for the drive pulley on DT-75 and AD-80 series standard stationary belt conveyors, or integrated with custom-designed belt conveyors.

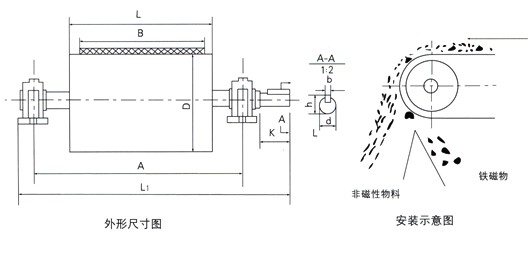

Installation diagram of the RCT(RCTG) series permanent magnetic drum：

型号参数项目	筒表磁感应强度 ≈GS	物料厚度 ≤mm	皮带速度 ≤m/s	重量 kg	外形尺寸mm
型号参数项目	筒表磁感应强度 ≈GS	物料厚度 ≤mm	皮带速度 ≤m/s	重量 kg	A	B	Dφ	L	L 1	K	dφ	h	b
RCT-32/40	1500	40	2.5	150	728	400	320	500	926	100	45	48.5	14
RCT-32/50	1500	60		198	850	500	320	600	1097	115	50	53.5	14
RCT-40/50	1550	80		250	850	500	400	600	1097	115	55	60	16
RCT-50/50	1600	100		370	850	500	500	600	1097	115	55	60	16
RCT-32/65	1500	70		245	1000	650	320	750	1280	135	65	69	18
RCT-40/65	1550	100		405	1000	650	400	750	1280	135	65	69	18
RCT-50/65	1600	130		520	1000	650	500	750	1280	135	70	76	20
RCT-50/80	1550	100		610	1300	800	500	950	1580	135	70	76	20
RCT-65/80	1650	130		720	1300	800	650	950	1661	175	70	76	20
RCT-80/80	1800	150		980	1300	800	800	950	1661	175	90	76	24
RCT-65/100	1700	130		910	1500	1000	650	1150	1861	175	90	97	24
RCT-80/100	1700	170		1200	1500	1000	800	1150	1954	215	90	97	24
RCT-65/120	1800	100		1500	1750	1200	650	1400	2195	215	110	119	32
RCT-100/120	1800	200		1890	1750	1200	1000	1400	2270	255	110	119	32
RCT-100/140	1800	230		2160	2000	1400	1000	1600	2446	255	110	119	32
RCT-125/160	1800	260		2800	2150	1600	1250	1800	2600	255

Note: This product is available with magnetic field intensities of 2000 GS, 3000 GS, 3800 GS, 4500 GS, 6000 GS, 8000 GS, etc. Customers are required to specify the desired intensity when placing an order.
