RCYC / RCYD Series Belt Self-Discharging Permanent Magnetic Iron Remover

RCYC & RCYD Series Belt Self-Discharging Permanent Magnetic Separator – Description

The RCYC and RCYD series permanent magnetic self-discharging separators consist of high-performance permanent magnetic cores, discharge belts, geared motors, frames, rollers, and other components. They are designed for use with various conveyors to automatically remove ferromagnetic materials from non-magnetic materials.

The RCYC and RCYD series suspended self-discharging permanent magnetic separators are automatic iron discharge devices. During operation, ferromagnetic materials continuously captured by the separator are automatically discharged through the rotation of the discharge belt, achieving automatic iron removal.

This series offers a wide range of applications, energy savings, low power consumption, easy maintenance, and low failure rate. It operates reliably in harsh environments and is widely adopted by many users. Explosion-proof versions are also available.

Explanation of the Model Designation for Permanent Magnetic Separators

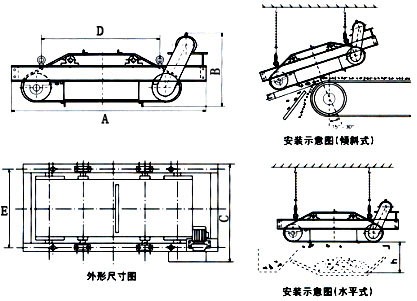

Installation Diagram of the RCYC & RCYD Series Belt Self-Discharging Permanent Magnetic Separator

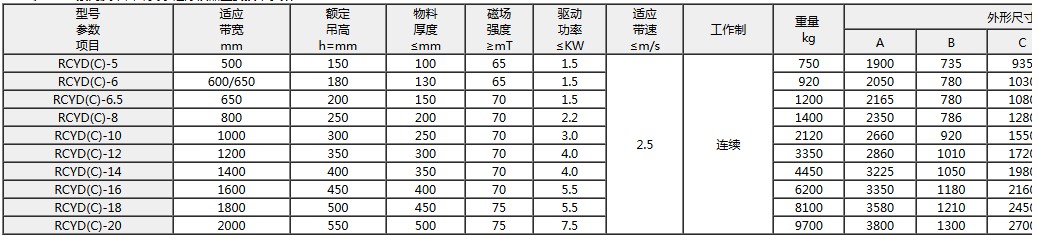

Main Technical Parameters of the RCYC & RCYD Series Belt Self-Discharging Permanent Magnetic Separator

The RCYC and RCYD-T series belt self-discharging permanent magnetic separators are available in ultra-high-intensity magnetic versions: Type T1 offers a magnetic field intensity of 90 mT, Type T2 provides 120 mT, and Type T3 delivers 150 mT.
