RCYP-II Series Self-Discharging Permanent Magnetic Iron Remover

RCYP-II Series Permanent Magnetic Self-Discharging Separator – Description

The RCYP-II series permanent magnetic self-discharging separator consists of a high-performance permanent magnetic core, discharge belt, geared motor, frame, rollers, and other components. It is designed for use with various conveyors to automatically remove ferromagnetic materials from non-magnetic materials.

Compared with the RCYD(C) series permanent magnetic self-discharging separator, the RCYP-II series has a shorter frame, making it suitable for applications where installation space is limited.

Explosion-proof versions are available.

For installation instructions, please refer to the RCYD(C) series permanent magnetic self-discharging separator.

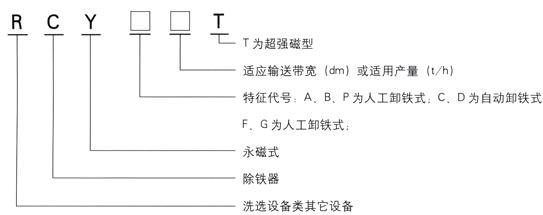

Explanation of the Model Designation for Permanent Magnetic Separators

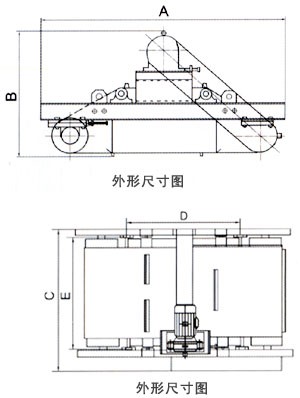

RCYP-II Series Permanent Magnetic Self-Discharging Separator – Overall Dimensions

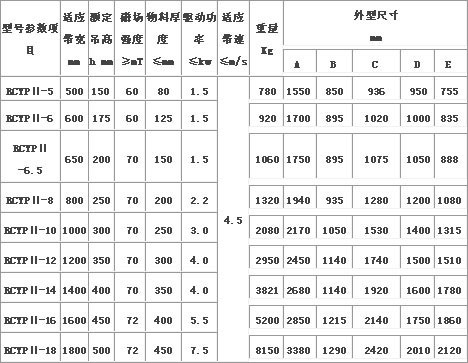

RCYP-II Series Permanent Magnetic Self-Discharging Separator – Main Technical Parameters

RCYP-II Series Permanent Magnetic Self-Discharging Separator – Ultra-High-Intensity Magnetic Versions

The RCYP-II series permanent magnetic self-discharging separator is available in ultra-high-intensity magnetic versions: Type T1 offers a magnetic field intensity of 90 mT, Type T2 provides 120 mT, and Type T3 delivers 150 mT.
